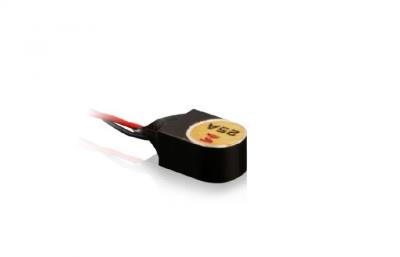

  • 25A
  • Model number 25A
    Description Ultra miniature
    Sensitivity pC/g typical 5
    Linear range g ±740
    Shock limit g 2000
    Frequency response ±5%,Hz 1-12,000
    Broadband noise (㎍ rms) 7000
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation Yes
    Hermetic seal No
    Weight grams(without cable) 0.2
    Dimensions mm (in) ? 0.381 x 2.54 (? 0.15 x 0.10)
    Mounting method Adhesive
    Cable included Integral with 3024-120

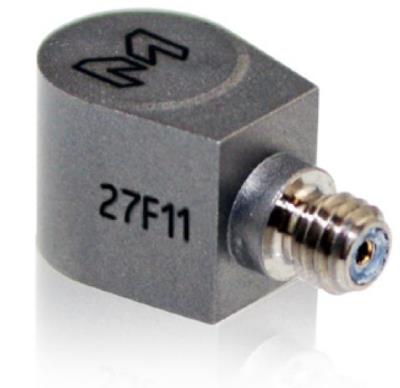

  • 27F11/F12
  • Model number 27F11/F12
    Description Lightweight teardrop TEDS
    Sensitivity pC/g typical 10/100
    Linear range g ±500/±50
    Shock limit g 5000
    Frequency response ±5%,Hz 2-10,000/3-10,000 (±10%)
    Broadband noise (㎍ rms) 2000/400
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation No
    Hermetic seal Yes
    Weight grams(without cable) 0.8/1.0
    Dimensions mm (in) ? 6.35 x 6.6 (? 0.25 x 0.26)
    Mounting method Adhesive
    Cable included 3053VM1-120
  • 27AM1
  • Model number 27AM1
    Description Lightweight teardrop
    Sensitivity pC/g typical 10/100
    Linear range g ±500/±50
    Shock limit g 5000
    Frequency response ±5%,Hz 2-10,000/3-10,000 (±10%)
    Broadband noise (㎍ rms) 2000/400
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation No
    Hermetic seal Yes
    Weight grams(without cable) 0.8/1.0
    Dimensions mm (in) ? 6.35 x 4.8 (? 0.25 x 0.19)
    Mounting method Adhesive
    Cable included 3053VM1-120

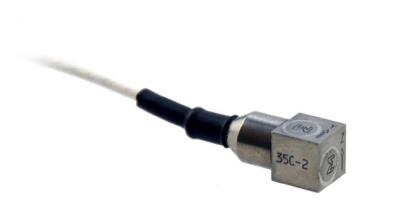

  • 35C
  • Model number 35C
    Description Ultra-miniature triaxial Hermetically sealed
    Sensitivity pC/g typical 2/5/10
    Linear range g ±2800/±1400/±700
    Shock limit g 5000
    Frequency response ±5%,Hz 2-8000/2-8000/2-6000 (±5%)
    Broadband noise (㎍ rms) 2000/1600/2700
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation No
    Hermetic seal Yes
    Weight grams(without cable) 0.76
    Dimensions mm (in) 5.97 cube (0.235 cube)
    Mounting method Adhesive
    Cable included Integral

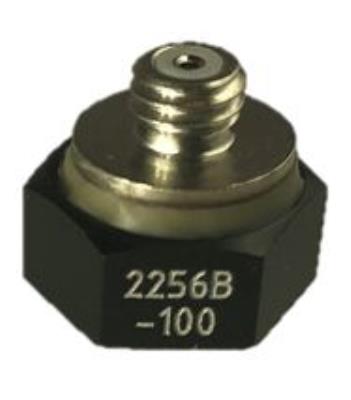

  • 2256B
  • Model number 2256B
    Description Lightweight General purpose
    Sensitivity pC/g typical 10/100
    Linear range g ±500/±50
    Shock limit g 2000
    Frequency response ±5%,Hz 1-10,000(±10%)
    Broadband noise (㎍ rms) 1000/300
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation Yes
    Hermetic seal Yes
    Weight grams(without cable) 4
    Dimensions mm (in) 11.2 hex x 7.4 (0.44 hex x 0.29)
    Mounting method Adhesive
    Cable included 3061A-120

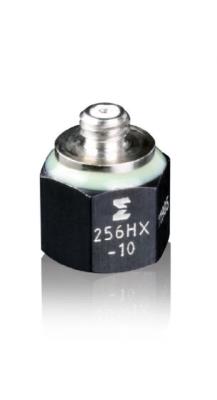

  • 256HX
  • Model number 256HX
    Description Lightweight General purpose
    Sensitivity pC/g typical 10/100
    Linear range g ±500/±50
    Shock limit g 2000
    Frequency response ±5%,Hz 1-10,000(±10%)
    Broadband noise (㎍ rms) 1000/300
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation Yes
    Hermetic seal Yes
    Weight grams(without cable) 4
    Dimensions mm (in) 11.2 hex x 9.4 (0.44 hex x 0.37)
    Mounting method Stud
    Cable included 3061A-120
  • 7250B
  • Model number 7250B
    Description Ultra wide bandwidth Thru-hole mount
    Sensitivity pC/g typical 2/10
    Linear range g ±2500/±500
    Shock limit g 10,000
    Frequency response ±5%,Hz 1 to 40,000 (±3 dB)
    Broadband noise (㎍ rms) 3500/1000
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation Yes
    Hermetic seal Yes
    Weight grams(without cable) 1.9
    Dimensions mm (in) ? 9.65 x 6.2 (? 0.381 x 0.25)
    Mounting method Screw
    Cable included 3091F-120
  • 7250BM1
  • Model number 7250BM1
    Description Ultra wide bandwidth Thru-hole mount Solder pins with attahced cable
    Sensitivity pC/g typical 2/10
    Linear range g ±2500/±500
    Shock limit g 10,000
    Frequency response ±5%,Hz 1 to 40,000 (±3 dB)
    Broadband noise (㎍ rms) 3500/1000
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation Yes
    Hermetic seal Yes
    Weight grams(without cable) 1.9
    Dimensions mm (in) ? 9.65 x 6.2 (? 0.381 x 0.25)
    Mounting method Screw
    Cable included 3024-120 (attached)
  • 65/65M1
  • Model number 65/65M1
    Description Industry standard
    Sensitivity pC/g typical 10/100
    Linear range g ±500/±50
    Shock limit g 10,000
    Frequency response ±5%,Hz 0.4-10,000/1.5-6000
    Broadband noise (㎍ rms) 800/400
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation 65 : No / 65M1 : Yes
    Hermetic seal Yes
    Weight grams(without cable) 5
    Dimensions mm (in) \'? 6.35 x 6.6 (? 0.25 x 0.26)
    Mounting method Adhesive
    Cable included 3053VM1-120
  • 66N5/N6
  • Model number 66N5/N6
    Description TEDS Isolated
    Sensitivity pC/g typical 10/100
    Linear range g ±500/±50
    Shock limit g 10,000
    Frequency response ±5%,Hz 0.4-14,000/1.5-10,000
    Broadband noise (㎍ rms) 800/400
    Operating temperature℃(℉) -55 to +125 (-67 to +257)
    Signal/ground isolation Yes
    Hermetic seal Yes
    Weight grams(without cable) 5.7
    Dimensions mm (in) \'? 9.78 x 5.8 (? 0.385 x 0.23)
    Mounting method Screw
    Cable included 3024-120
