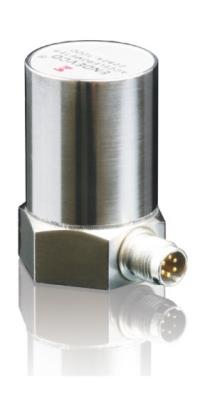

  • 2262A
  • Model number : 2262A
    Description : Rugged Critically damped High sensitivity

    Linear range g : ±1000/ ±2000
    Sensitivity mV/g typical : 5 / 25
    Frequency response ±5%,Hz : 0-1500 / 0-3000

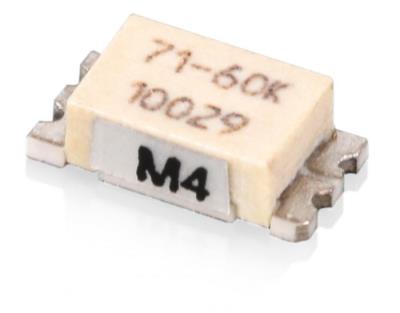

  • 71M
  • Model number 71M
    Description : Surface Mount Undamped Low mass

    Linear range g : ±2000/ ±6000/ ±20,000 / ±60,000
    Shock limit g : 10,000 / 18,000 / 60,000 / 120,000
    Operating Temperature ℃ : -54 to 66 (-65 to +150)
    Weight grams : 0.06
    Mounting method : Adhesive
  • 72
  • Model number : 72
    Description Lightly damped : Rugged ESD protection

    Linear range g :±20,000/ ±60,000
    Shock limit g : 80,000 / 240,000
    Operating Temperature ℃ : -54 to 71 (-65 to +160)
    Weight grams : 0.16
    Mounting method : SMT or adhesive
  • 74
  • Model number : 74
    Description Triaxial : Lightly damped Surface mount LCC

    Linear range g : ±20,000/ ±60,000
    Shock limit g : 60,000 / 180,000
    Operating Temperature ℃ : -55 to +121 (-67 to +250)
    Weight grams : 1.2
    Mounting method : SMT or adhesive

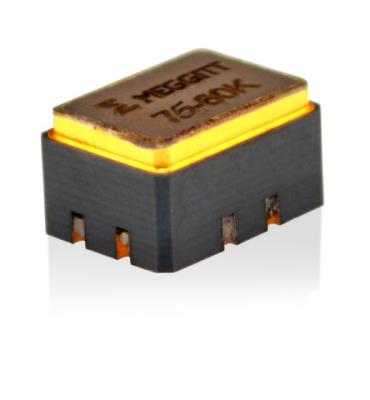

  • 75
  • Model number :75
    Description Triaxial : Undamped Surface mount LCC

    Linear range g : ±2000/ ±6000/ ±20,000 / ±60,000
    Shock limit g : 10,000 / 18,000 / 60,000 / 80,000
    Operating Temperature ℃ : -55 to +121 (-67 to +250)
    Weight grams : 1.2
    Mounting method :SMT or adhesive

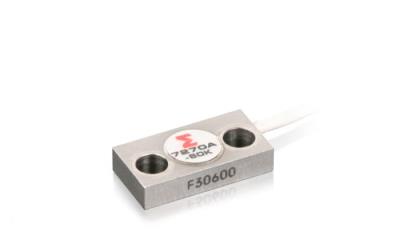

  • 7270A
  • Model number : 7270A
    Description High response : Undamped Shock standard

    Linear range g : ±2000/±6000/±20,000/±60,000 /±200,000
    Sensitivity mV/g typical : 100/30/10/3/1
    Frequency response ±5%,Hz : 0-10k/0-20k/0-50k/0-100k/0-150k
    Shock limit g : 10,000/18,000/60,000/180,000 /200,000
    Operating Temperature ℃ : -55 to +121 (+67 to +250)

    Dimensions mm (in) : 14.22 x 7.1 x 2.79
    (0.560 x 0.280 x 0.110)
    Weight grams : 1.5
    Mounting method : Screw

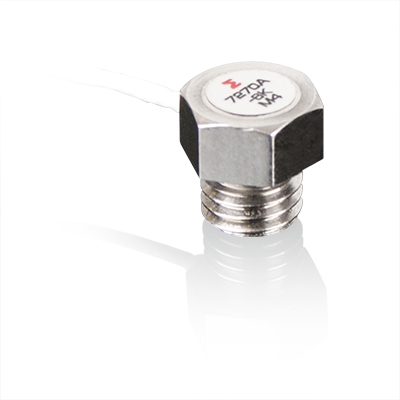

  • 7270AM4
  • Model number 7270AM4
    Description High response Undamped Stud mount

    Linear range g : ±2000/±6000/±20,000/±60,000 /±200,000
    Sensitivity mV/g typical : 100/30/10/3/1
    Frequency response ±5%,Hz : 0-10k/0-20k/0-50k/0-100k/0-150k
    Shock limit g : 10,000/18,000/60,000/180,000 /200,000
    Operating Temperature ℃ : -55 to +66 (+67 to +150)

    Dimensions mm (in) : 7.92 (0.312)
    Hex x 8.9 (0.350)

    Weight grams : 1.5
    Mounting method : 1/4-28 integral stud
  • 7270AM6
  • Model number 7270AM6
    Description Rugged : Mechanical filter Stud mount

    Linear range g : ±2000/±6000/±20,000/±60,000
    Sensitivity mV/g typical : 100/30/10/3
    Frequency response ±5%,Hz : 0-1000(±10%)
    Shock limit g : 10,000/18,000/60,000/100,000
    Operating Temperature ℃ : -64 to +66 (-30 to +150)
    Dimensions mm (in) : 17.15 x 14.73 x 15.78
    (0.675 x 0.580 x 0.621)

    Weight grams : 8.4
    Mounting method : 1/4-28 integral stud

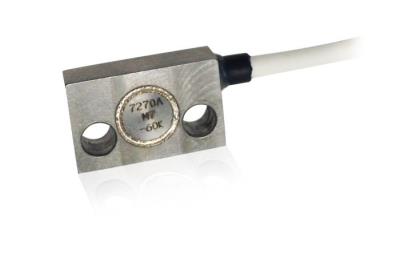

  • 7270AM7
  • Model number : 7270AM7
    Description Extremely rugged : Undamped Low noise cable

    Linear range g: ±2000/±6000/±20,000/±60,000 /±200,000
    Sensitivity mV/g typical :100/30/10/3/1
    Frequency response ±5%,Hz : 0-10/0-20/0-50/0-100/0-150
    Shock limit g : 10,000/18,000/60,000/180,000 /200,000
    Operating Temperature ℃ : -55 to +121 (+67 to +250)

    Dimensions mm (in) : 14.2 x 8.9 x 4.06
    (0.560 x 0.350 x 0.160)

    Weight grams : 4
    Mounting method : 4-40 screws

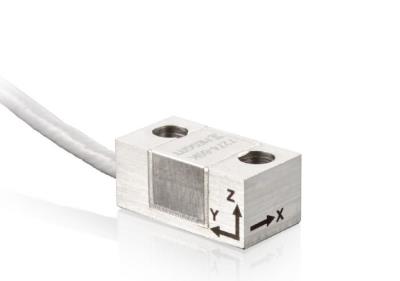

  • 7274
  • Model number : 7274
    Description Triaxial : Undamped High response
    Linear range g : ±2000/±6000/±20,000/±60,000
    Sensitivity mV/g typical : 50/15/5/1.5
    Frequency response ±5%,Hz : 0-18k/0-36k/0-70k/0-140k
    Shock limit g : 10,000/18,000/60,000/180,000
    Operating Temperature ℃ : -55 to +66 (+67 to +150)
    Dimensions mm (in) : 14.22 x 7.45 x 6.22
    (0.560 x 0.294 x 0.245)

    Weight grams : 2.9
    Mounting method : Screw
