  • 701AH-701FH
  • Model number : 701AH-701FH
    Description : Rugged Al housing Damped for survivability 28 AWG cable

    Linear range g : ±1000
    Sensitivity mV/g typical : 0.3
    Frequency response ±5%,Hz : 0-4000
  • 726CH
  • Model number : 726CH
    Description : SAE J211/J2570 Compliant Multi-mode damping Broad frequency response

    Linear range g : ±2000
    Sensitivity mV/g typical : 0.3
    Frequency response ±5%,Hz : 0-5000
  • 757AH-757FH
  • Model number : 757AH-757FH
    Description : Small and lightweight Damped for survivability Flevible cable

    Linear range g : ±2000
    Sensitivity mV/g typical : 0.3
    Frequency response ±5%,Hz : 0-3000
  • 758
  • Model number : 758
    Description : Rugged Mounting Flexibility 28 AWG cable

    Linear range g : ±2000
    Sensitivity mV/g typical : 0.20
    Frequency response ±5%,Hz : 0-4000
  • 7264C
  • Model number : 7264C
    Description : Industry standard Undamped Meets SAE J211 / J2570

    Linear range g : ±500/ ±2000
    Sensitivity mV/g typical : 0.80/0.20
    Frequency response ±5%,Hz : 0-3000/0-5000
  • 7264D
  • Model number : 7264D
    Description : High response Undamped Meets SAE J211 / J2570

    Linear range g : ±2000
    Sensitivity mV/g typical : 0.20
    Frequency response ±5%,Hz : 0-6000

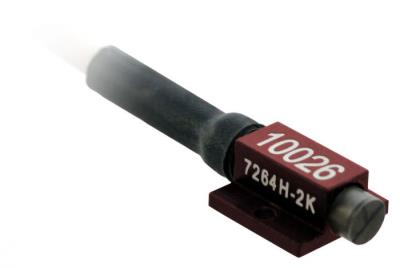

  • 7264H
  • Model number: 7264H
    Description : Extremely rugged Multi-mode damping Pedestrian safety testing

    Linear range g : ±2000
    Sensitivity mV/g typical : 0.20
    Frequency response ±5%,Hz : 0-6000

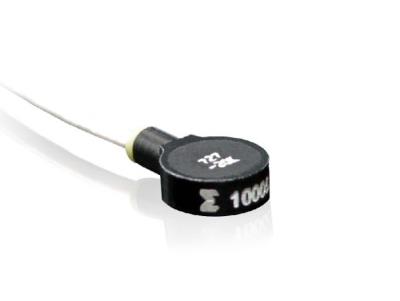

  • 727
  • Model number : 727
    Description : Lightweight Broad frequency response Drop testing

    Linear range g : ±2000/ ±6000/ ±20,000/ ±60,000
    Sensitivity mV/g typical : 10 / 3 / 1 0.3uV/V/g
    Frequency response ±5%,Hz : 0-10,000 / 0-20,000 / 0-50,000 / 0-100,000

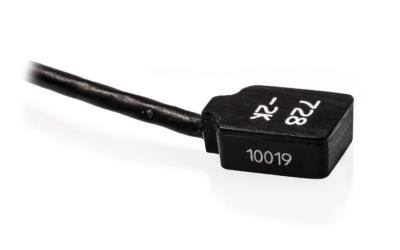

  • 728
  • Model number : 728
    Description : Small and lightweight Broad bandwidth Adhesive mount

    Linear range g : ±2000/ ±10,000
    Sensitivity mV/g typical : 0.20 / 0.016
    Frequency response ±5%,Hz : 0 to 8000 ±1dB

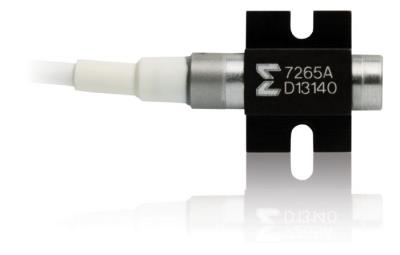

  • 7265A / A-HS
  • Model number : 7265A / A-HS
    Description : Low mass Critically damped High sensitivity

    Linear range g : ±100/ ±20
    Sensitivity mV/g typical : 5 / 25
