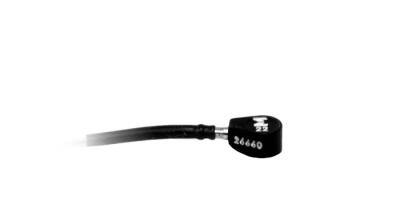

  • 22
  • Model number 22
    Description Micro-miniature teardrop
    Sensitivity pC/g typical 0.4
    Sinusoidal limit g 2,500
    Shock limit g 10,000
    Frequency response ±5%,Hz 3 to 12,000
    Operating Temperature ℃ -73 to +150 (-100 to +300)
    Signal/ground isolation Yes
    Hermetic seal No
    Weight grams(without cable) 0.14
    Dimensions mm (in) ? 3.76 x 2.79 (? 0.148 x 0.110)
    Mounting method Adhesive
    Cable included 3095A-120

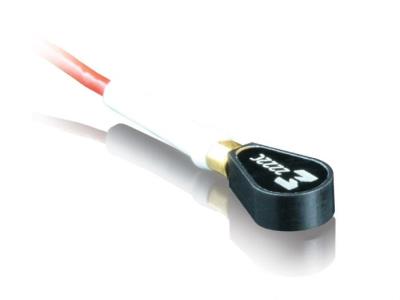

  • 2222C
  • Model number 2222C
    Description Miniature teardrop
    Sensitivity pC/g typical 1.4
    Sinusoidal limit g 1000
    Shock limit g 10,000
    Frequency response ±5%,Hz 1-10,000
    Operating Temperature ℃ -73 to +177 (-100 to +350)
    Signal/ground isolation Yes
    Hermetic seal No
    Weight grams(without cable) 0.5
    Dimensions mm (in) 9.53 hex x 4.8 (? 0.25 x 0.13)
    Mounting method Adhesive
    Cable included 3090C-120

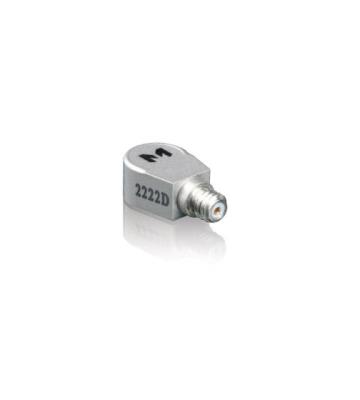

  • 2222D
  • Model number 2222D
    Description Miniature teardrop Hermetic
    Sensitivity pC/g typical 1.1
    Sinusoidal limit g 1000
    Shock limit g 10,000
    Frequency response ±5%,Hz 0.1-12,000
    Operating Temperature ℃ -55 to +175 (-67 to +347)
    Signal/ground isolation No
    Hermetic seal Yes
    Weight grams(without cable) 1.0
    Dimensions mm (in) ? 6.35 x 4.1 (? 0.25 x 0.16)
    Mounting method Adhesive
    Cable included 3053V-120

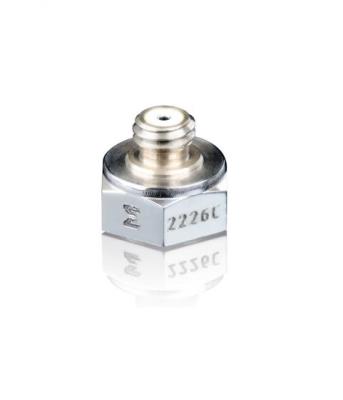

  • 2226C
  • Model number 2226C
    Description Lightweight Miniature
    Sensitivity pC/g typical 2.8
    Sinusoidal limit g 1000
    Shock limit g 2000
    Frequency response ±5%,Hz 0.1-7000
    Operating Temperature ℃ -55 to +177 (-67 to +350)
    Signal/ground isolation No
    Hermetic seal No
    Weight grams(without cable) 2.8
    Dimensions mm (in) 9.53 hex x 5.8 (3/8 hex x 0.19)
    Mounting method Adhesive
    Cable included 3060D-120

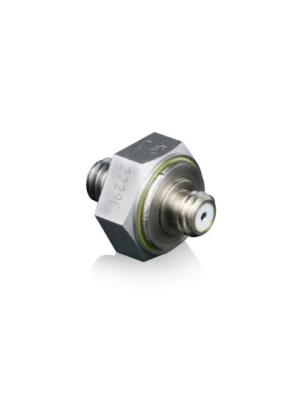

  • 2229C
  • Model number 2229C
    Description Miniature Stud mount
    Sensitivity pC/g typical 2.8
    Sinusoidal limit g 1000
    Shock limit g 2000
    Frequency response ±5%,Hz 0.1-7000
    Operating Temperature ℃ -55 to +177 (+67 to +350)
    Signal/ground isolation Yes
    Hermetic seal No
    Weight grams(without cable) 4.9
    Dimensions mm (in) 11.13 hex x 5.5 (7/16 hex x 0.22)
    Mounting method Stud
    Cable included 3060D-120

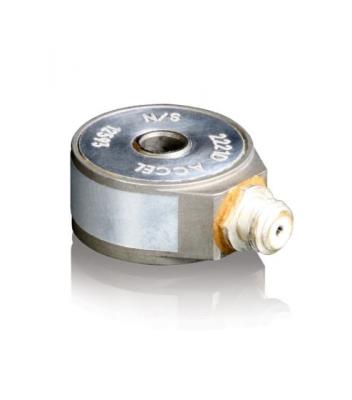

  • 2221D
  • Model number 2221D
    Description Thru-hole mount 360° cable orientation
    Sensitivity pC/g typical 17
    Sinusoidal limit g 1000
    Shock limit g 5000
    Frequency response ±5%,Hz 0.1-10,000
    Operating Temperature ℃ -55 to +177 (-67 to +350)
    Signal/ground isolation Yes
    Hermetic seal No
    Weight grams(without cable) 12
    Dimensions mm (in) ? 15.24 x 8.0 (? 0.6 x 0.315)
    Mounting method Screw
    Cable included 3090C-120
  • 2224C
  • Model number 2224C
    Description Precision lab testing
    Sensitivity pC/g typical 12
    Sinusoidal limit g 1000
    Shock limit g 2000
    Frequency response ±5%,Hz 0.1-10,000
    Operating Temperature ℃ -55 to +177 (-67 to +350)
    Signal/ground isolation No
    Hermetic seal No
    Weight grams(without cable) 16
    Dimensions mm (in) 14.2 hex x 13.7 (9/16 hex x 0.54)
    Mounting method Stud
    Cable included 3090C-120

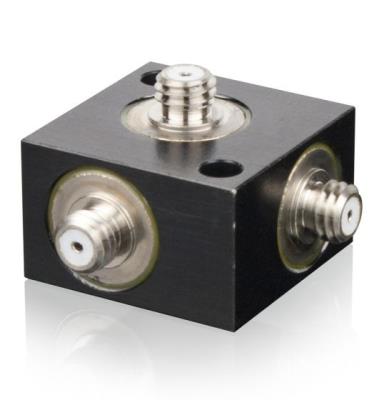

  • 2228C
  • Model number 2228C
    Description Triaxial Ground isolation
    Sensitivity pC/g typical 28
    Sinusoidal limit g 1000
    Shock limit g 2000
    Frequency response ±5%,Hz 0.1-6000
    Operating Temperature ℃ -55 to +177 (-67 to +350)
    Signal/ground isolation Yes
    Hermetic seal No
    Weight grams(without cable) 15
    Dimensions mm (in) 18.72 x 18.72 x 11.68 (0.737 x 0.737 x 0.460)
    Mounting method Screw
    Cable included 3060D-120 (3)

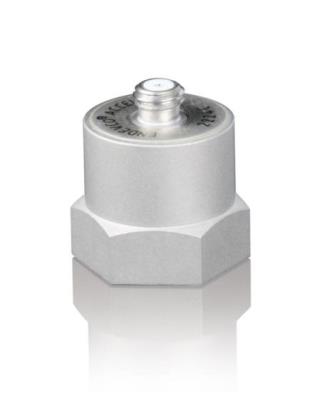

  • 2225M5A
  • Model number 2225M5A
    Description Very high g shock
    Sensitivity pC/g typical 0.025
    Sinusoidal limit g NA
    Shock limit g 100,000
    Frequency response ±5%,Hz NA
    Operating Temperature ℃ -18 to +66 (0 to +150)
    Signal/ground isolation No
    Hermetic seal No
    Weight grams(without cable) 13
    Dimensions mm (in) 14.2 hex x 13. (9/16 hex x 0.54)
    Mounting method Stud
    Cable included 3060D-120

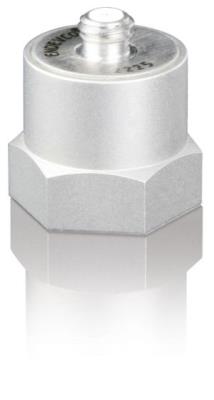

  • 2225
  • Model number 2225
    Description High g shock
    Sensitivity pC/g typical 0.75
    Sinusoidal limit g 10,000
    Shock limit g 20,000
    Frequency response ±5%,Hz 1-10,000
    Operating Temperature ℃ -55 to +177 (-67 to +350)
    Signal/ground isolation No
    Hermetic seal No
    Weight grams(without cable) 13
    Dimensions mm (in) 14.2 hex x 13. (9/16 hex x 0.54)
    Mounting method Stud
    Cable included 3090C-120
