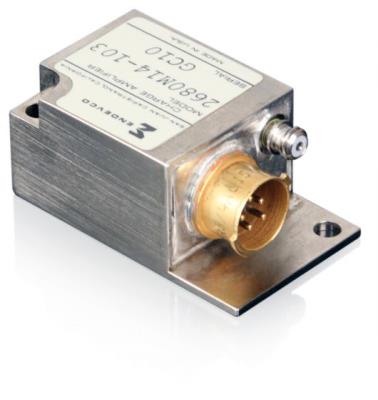

  • 2680MX
  • Model number 2680MX
    Features Airborne applications Small, lightweight
    Input PE
    Channels 1
    Gain 0.1-100 mV/pC
    Broadband noise rms 1.5 mV
    Lower cutoff freq Hz (-3dB) 3
    Upper cutoff freq Hz (-3dB) Selectable
    Power requirements VDC 20-32
    Operating temperature℃(℉) -67 to +212 (-55 to 100)
    Weight grams 34
  • 2685MX
  • Model number 2685MX
    Features Airborne applications Small, lightweight
    Input IEPE
    Channels 1
    Gain 0.1-100 mV/mV
    Broadband noise rms 1.5 mV
    Lower cutoff freq Hz (-3dB) 0.7
    Upper cutoff freq Hz (-3dB) Selectable
    Power requirements VDC 20-32
    Operating temperature℃(℉) -67 to +212 (-55 to 100)
    Weight grams 34
  • 2777A
  • Model number 2777A
    Features 2 gain options Airborne applications Accelerations and velocity outputs
    Input DIFF PE
    Channels 1
    Gain 2/10 mV/pC
    Broadband noise rms 1.5 mV (RTO)
    Lower cutoff freq Hz (-3dB) 5.73/8.59/11.5/14.3/113
    Upper cutoff freq Hz (-3dB) 17,500
    Power requirements VDC 22-31
    Operating temperature℃(℉) -5 to + 185 (-15 to 85)
    Weight grams 227

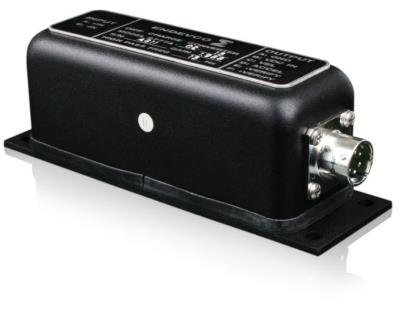

  • 2771C
  • Model number 2771C
    Features 4 gain options Supports TEDS
    Input PE
    Channels 1
    Gain 0.1/1/5/10 mV/pC
    Broadband noise rms 5/30/50/50 ㎶
    Lower cutoff freq Hz (-3dB) 0.4/0.4/2/2
    Upper cutoff freq Hz (-3dB) 8/30,000/50,000/50,000(±5%)
    Power requirements VDC 24-30
    Operating temperature℃(℉) -40 to + 257 (-40 to 125)
    Weight grams 57
  • 2771CM2
  • Model number 2771CM2
    Features Designed for use with extreme high temp sensors, 1200℉ (650℃)
    Input PE
    Channels 1
    Gain 1 mV/pC
    Broadband noise rms 10 ㎶
    Lower cutoff freq Hz (-3dB) 2
    Upper cutoff freq Hz (-3dB) 30
    Power requirements VDC 24-30
    Operating temperature℃(℉) -40 to + 257 (-40 to 125)
    Weight grams 57
  • 2721B
  • Model number 2721B
    Features Charge amplifier Ideal for very high temperature PE sensors
    Input PE
    Channels 1
    Gain 1-100 mV/pC
    Broadband noise rms 100
    Lower cutoff freq Hz (-3dB) 1
    Upper cutoff freq Hz (-3dB) 10,000
    Power requirements VDC ±15 VDC
    Type of control Manual
    Rack mount N/A

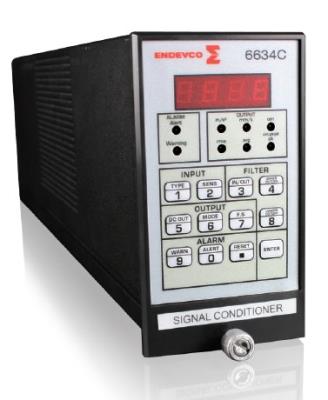

  • 6634C
  • Model number 6634C
    Features Acceleration, velocity and displacement outputs Optional programmable filter Alarm outputs
    Input SEPE/DIFF PE/IEPE/Velocity coil/RCC
    Channels 1
    Gain Selectable
    Broadband noise rms 1 mV
    Lower cutoff freq Hz (-3dB) 2 (±5%)
    Upper cutoff freq Hz (-3dB) 20,000 (±5%)
    Power requirements VDC 90-240
    Type of control Manual/RS-232
    Rack mount 4948

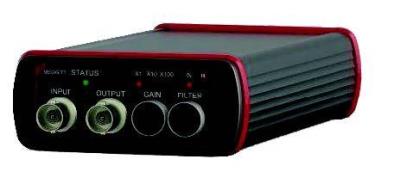

  • 4416C
  • Model number 4416C
    Features IEPE power supply Portable and compact Rechargeable battery
    Input IEPE
    Channels 1
    Gain 1,10,100 selectable
    Broadband noise rms <20 ㎶
    Lower cutoff freq Hz (-3dB) 0.1
    Upper cutoff freq Hz (-3dB) 100,000
    Power requirements VDC Battery powered, rechargeable
    Type of control Manual
    Rack mount N/A

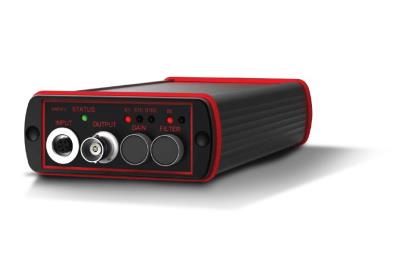

  • 4418
  • Model number 4418
    Features Bridge single conditioner Portable and compact ZMO adjustment
    Input PR, VC
    Channels 1
    Gain 1,10,100 selectable
    Broadband noise rms <20 ㎶
    Lower cutoff freq Hz (-3dB) DC
    Upper cutoff freq Hz (-3dB) 10,000
    Power requirements VDC Battery powered, rechargeable
    Type of control Manual
    Rack mount N/A

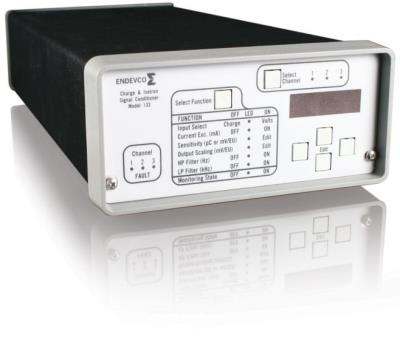

  • 133
  • Model number 133
    Input PE/IEPE/RCC
    Channels 3
    Gain 0-1000
    Display DPM
    Broadband noise rms 20 ㎶ RTI and 400 ㎶ RTO
    Lower cutoff freq Hz (-3dB) 0.1
    Upper cutoff freq Hz (-3dB) 50,000
    Power requirements VDC 90-264 133 -1 version : 12-18 VDC
    Type of control Manual/RS-232
    Rackmount part number 31979
    Features *Optional HP and LP filters *Sensor fault indicators *User selectable current excitation *Control sofrware *Programmable gain
