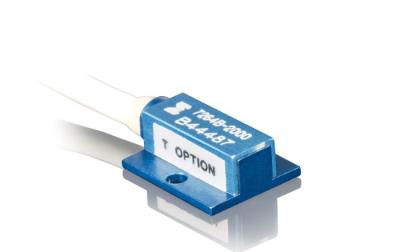

  • 7264B
  • Model number : 7264B
    Description : Crash test Undamped Meets SAE J211 / J2570

    Linear range g : ±500/ ±2000
    Sensitivity mV/g typical : 0.80/0.20
    Frequency response ±5%,Hz : 0-3000/0-5000
  • 8507C
  • Model number 8507C
    Description Gage High sensitivity Temp compensation
    Full scale pressure psi 1/2/5/15
    Sensitivity mV/psi 200/100/60/20
    Resonance frequency kHz 55/70/85/130
    Non linearity (typ) %FSO 1.5/1.0/0.5/0.2
    Operating temperature℃(℉) -54 to +107 (-65 to +225)
    Burst pressure psi 20/40/100/150
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 0.3
    Mounting method RTV bond
  • 8510B
  • Model number 8510B
    Description Gage Vent tube Temp compensation
    Full scale pressure psi 1/2/5/200/500/2000
    Sensitivity mV/psi 200/100/60/1.5/0.6/0.15
    Resonance frequency kHz 55/70/85/320/500/900
    Non linearity (typ) %FSO 1.0
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 25/40/100/1000/2500/10,000
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 2.3
    Mounting method 10-32 UNF-2A
  • 8510C
  • Model number 8510C
    Description Gage High resonance Temp compensation
    Full scale pressure psi 15/50/100
    Sensitivity mV/psi 15/4.5/2.25
    Resonance frequency kHz 180/320/500
    Non linearity (typ) %FSO 0.15/0.1/0.1
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 75/250/400
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 2.3
    Mounting method 10-32 UNF-2A
  • 8511A
  • Model number 8511A
    Description Rugged Gage High pressure
    Full scale pressure psi 5000/10,000/20,000
    Sensitivity mV/psi 0.1/0.05/0.025
    Resonance frequency kHz <1000
    Non linearity (typ) %FSO 1.2/2.5/2.5
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 20,000/30,000/40,000
    Face diameter mm(in) 8.13 (0.320)
    Weight grams 11
    Mounting method 3/8-24 UNF-2A
  • 8523
  • Model number 8523
    Description Gage High temperature Temp compensation
    Full scale pressure psi 15/50/100/200/500
    Sensitivity mV/psi 20/6/3/1.5/0.6
    Resonance frequency kHz 140/240/350/450/900
    Non linearity (typ) %FSO 0.25/0.25/0.25/0.4/0.4
    Operating temperature℃(℉) -54 to +260 (-65 to +500)
    Burst pressure psi 30/100/200/400/1000
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 8.5
    Mounting method 10-32 UNF-2A

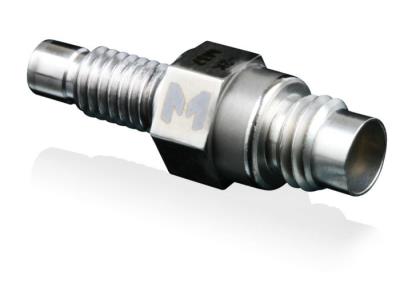

  • 8530BM37
  • Model number 8530BM37
    Description Absolute Detachable cable ABS breaking studies
    Full scale pressure psi 200/500/1000/2000
    Sensitivity mV/psi 1.5/0.6/0.3/0.3
    Resonance frequency kHz 750/1000/>1000/>1000
    Non linearity (typ) %FSO 0.2
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 800/2000/4000/4000
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 2.3
    Mounting method 10-32 UNF-2A

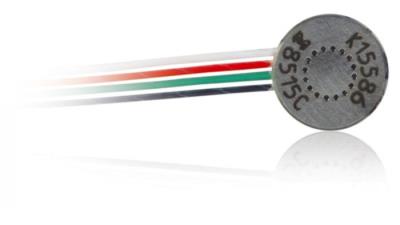

  • 8515C
  • Model number 8515C
    Description Absolute 0.03 inch thin Surface mount
    Full scale pressure psi 15/50
    Sensitivity mV/psi 13.3/4.0
    Resonance frequency kHz 180/320
    Non linearity (typ) %FSO 0.2
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 75/250
    Face diameter mm(in) 6.35 (0.25)
    Weight grams 0.08
    Mounting method Adhesive

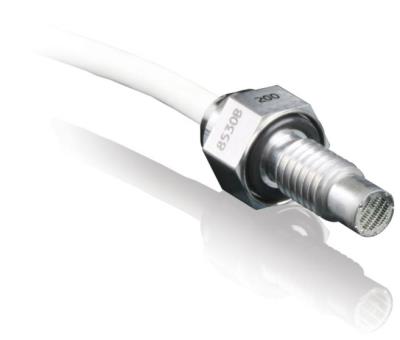

  • 8530B
  • Model number 8530B
    Description Absolute High resonance Temp compensation
    Full scale pressure psi 200/500/1000/2000
    Sensitivity mV/psi 1.5/0.6/0.3/0.3
    Resonance frequency kHz 750/1000/>1000/>1000
    Non linearity (typ) %FSO 0.2
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 800/2000/4000/4000
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 2.3
    Mounting method 10-32 UNF-2A
  • 8530C
  • Model number 8530C
    Description Absolute High sensitivity Temp compensation
    Full scale pressure psi 15/50/100
    Sensitivity mV/psi 15/4.5/2.25
    Resonance frequency kHz 180/320/500
    Non linearity (typ) %FSO 0.15/0.1/0.1
    Operating temperature℃(℉) -54 to +121 (-65 to +250)
    Burst pressure psi 75/250/400
    Face diameter mm(in) 3.86 (0.152)
    Weight grams 2.3
    Mounting method 10-32 UNF-2A
