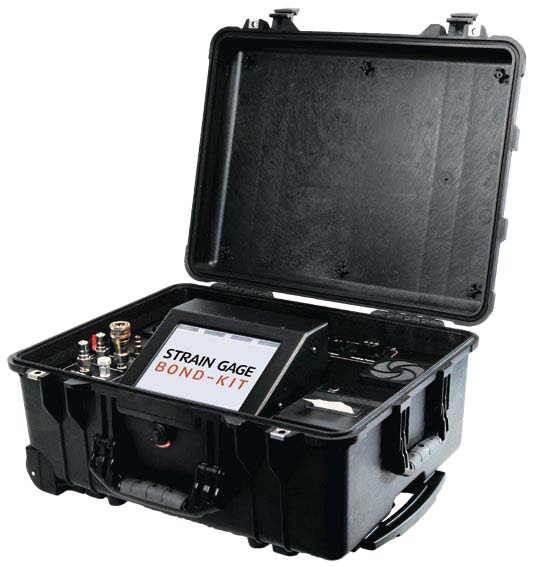

  • 스트레인게이지 고온 본딩 시스템
  • 스트레인 게이지 본딩용 챔버를 사용할 수 없는 극한 환경을 위한 유일한 솔루션
  • 교육용 소형 인장시험기
  • # 특 징

    - 재료의 파단, 항복, 인장강도, Poisson\'s Ratio 측정
    - 진 응력-진 변형률 측정, Strain Stress Curve 제작
    - Option : 휴대용 전용 펠리칸 케이스?

    ?# 제 원

    - 적정 가력하중 : 2 Ton
    - 무게 : 20 Kg
    - 재질 : 스틸, 알루미늄 프레임
    - 이동 거리 : 70 mm
    - 인장 시편 : KS 규격 시편
    - 사이즈 : 가로 500 세로 200 높이 100 (mm)
  • StudentDAQ
  • - Single-channel strain gage data acquisition
    - Hardware and software support for full-bridge, halfbridge, and 120Ω quarter-bridge circuits.
    - Built-in bridge completion
    - 3-wire strain gage connection
    - 80-Hz data rate
    - Fixed excitation of 2.5 V
    - Input range of ±16,000 με
    - Powered via the USB interface
    - Intuitive, user-friendly software
    ? No calibration is required
  • V/E-40 Strain Gage Simulator
  • This decade resistor/strain gage simulator can be used as a resistance standard, decade box, instrumentation calibrator, strain simulator, or investigative tool. It is also useful in measurement of arbitrary resistances and large strains.
  • Model 1550B Strain Indicator Calibrator
  • A true Wheatstone-bridge simulator, the 1550B Strain Indicator Calibrator presents known and repeatable resistance changes to the input of the indicator. Three decades of push buttons are used to produce incremental resistance changes. The 1550B is NIST-traceable.

  • Model 1300 Gage Installation Tester
  • The 1300 Gage Installation Tester is used to verify the quality of an installed strain gage, as well as the complete gage installation, including leadwires. A carefully selected individualized test voltage is used for each measurement mode. Operation is by push buttons.
  • Model 700 Portable Strain Gage Welding and Soldering Unit
  • A battery-operated capacitive discharge spot welder for attaching and wiring weldable strain gages and temperature sensors.
  • Model RS-200 인장시험기
  • The RS-200 Milling Guide is a precision fixture for accurate positioning and drilling of a hole through the center of special strain gage rosettes used for determination of residual stresses by the blind hole drilling method.
