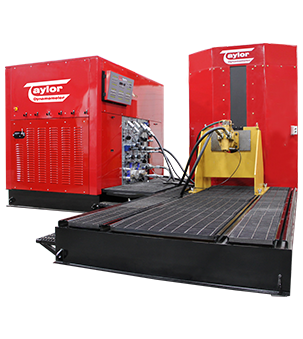

- Versatile, Heavy-duty Hydraulic Test Centers
- For powertrain testing it’s all about fast and exceptional results achieved in the safest manner possible. Our HTCs offer full functionality to test all types of transmissions, motors, cylinders, valve blocks, torque converters and pumps. As you evaluate your needs for heavy-duty mobile testing equipment, consider how upgrading to the latest technology can improve your bottom line.
** Specifications include:
- Available in 200, 300, 400 or 500 hp (149, 224, 298 and 373 kW)
- High Flow Supply Circuit feature available on the HTC-500 (500 hp)
- Reservoir capacity of 750 gal. (2,839 l) on HTC-500 with High Flow Supply
- An additional 100 gal. (379 l) separate machine reservoir available on all models
- High capacity 20,000 lb (9,072 kg) work support with integral sump
- Adjustable driveline height 16 ? 77 in. (41 ? 196 cm)
- Four (4) PWM outputs and two (2) solenoid outputs for component control
- Two (2) variable flow supply circuits
