- Water Brake Chassis Dynamometers
- With a comprehensive selection and proven record of accuracy and durability across the world’s largest installed base, Taylor’s Water Brake (Hydraulic) Chassis Dynos are ideal for a wide range of medium- to heavy-duty testing applications in the transportation, education and military markets.
Chassis water brake dynos (also known as hydraulic dynamometers) can be operated continuously to resolve overheating, fuel mileage and drivetrain issues.
Taylor’s eight models accommodating 50 to 1,100 hp at 40 mph enable testing of single-axle diesel pickup trucks, RVs and buses up through the largest tandem-axle on-highway trucks and buses. Tap into our deep product and applications knowledge to help you choose and make the most of the right water brake system for current and future needs.
- Eddy Current Chassis Dynamometers
- Economical air-cooled Eddy Current Chassis Dynos from Taylor, which save on costs because they don’t require a water recirculation system for operation, are an excellent choice for quick power checks and other short tests of medium- or heavy-duty single- or tandem-axle trucks and buses.
Accommodating continuous vehicle power ranges from 50 hp to 622 hp (37 kW to 464 kW), Taylor’s chassis dynamometers allow a top recommended speed of 90 mph (145 kph) at full load. Look to our experts to not only help you select your optimal system, but also to provide design, configuration, installation and training for a total solution that integrates seamlessly with your operation.
- AC Chassis Dynamometers
- Built for medium- to heavy-duty vehicles and rough operating conditions in research and development applications, Taylor Dynamometer’s AC Chassis Dynos accommodate continuous vehicle power ranges of up to 517 hp (385 kW) per axle at 30 mph (48 kph).
Each of the four models available offers excellent dynamic response due to the low moment of inertia and high pulse torque. Advanced control capabilities allow for motoring or absorbing to provide variable road load simulations and simulated terrain. Also equipped with a positioning encoder, our AC Chassis Dynamometers allow a top recommended speed of 90 mph (145 kph) at full load.

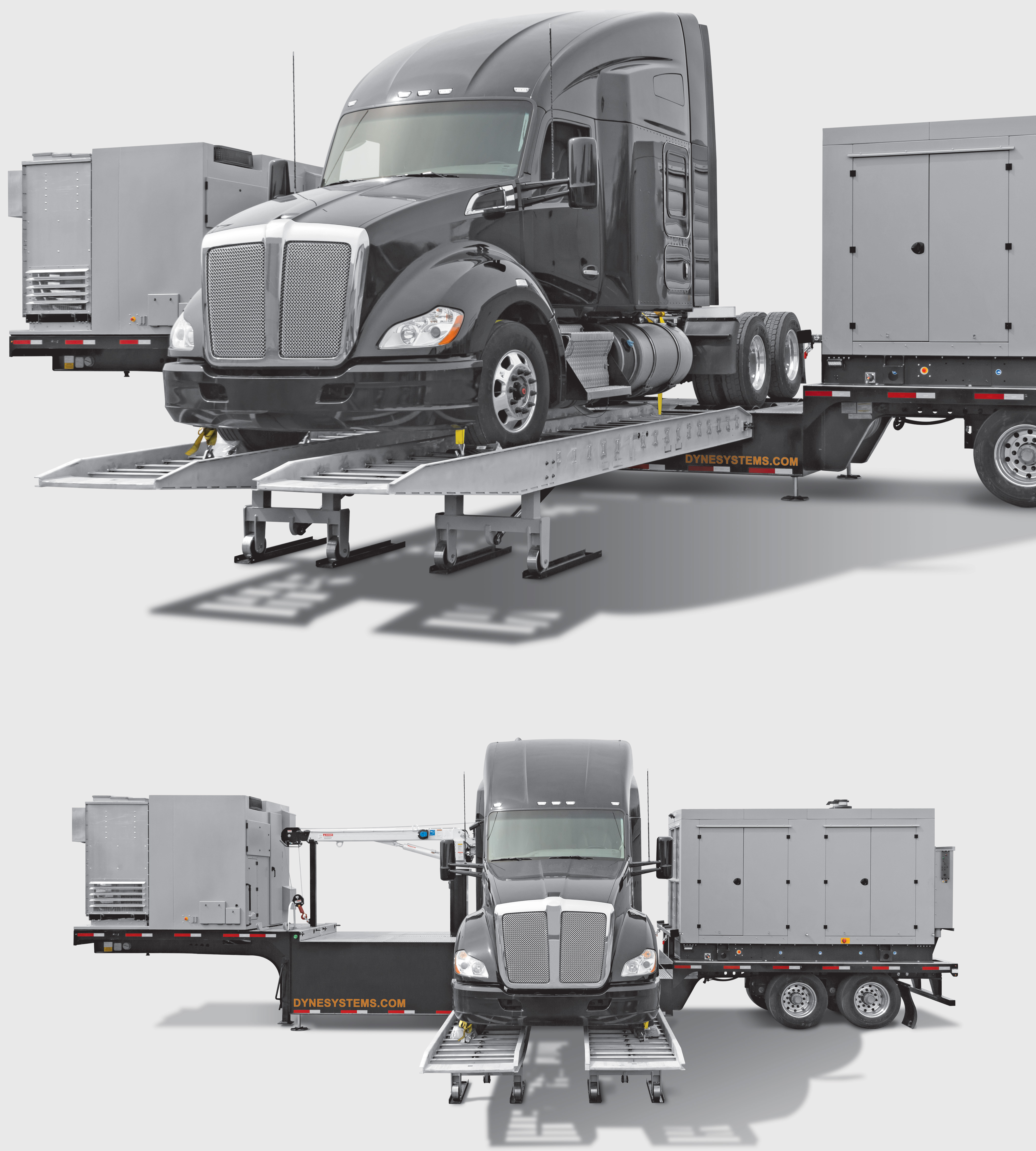

- Portable AC Chassis Dynamometer
- The TD-24-AC-T is a self-contained, portable, motorized, Chassis Dynamometer specifically designed for testing Over the Highway (OTH) trucks. Rated to test at altitudes up to 10,000 ft (3,048 m), the TD-24-AC-T is road-legal and offers side loading with ramps. The Portable AC Chassis Dynamometer takes less than 90 minutes to set up and begin testing.
The Portable AC Chassis Dyno Features include:
- Test at altitudes up to 10,000 ft (3,048 m)
- Easy setup. Begin testing in under 90 minutes
- Designed for testing Over the Highway (OTH) trucks
- Self-Contained, Portable and Road Legal
- State-of-the-art DynPro2 Data Acquisition and Control System
- Auto Leveling System
- Configurable drive cycles with simple spreadsheet input
- Hydraulic Ramp System designed for simultaneous lift of both ramps
- Electro-Hydraulic Crane with wireless controls
